FF3000 FLANGE FACER

FF3000 FLANGE FACER

One of the most compact and versatile tools of its kind. With its modular design, tool-less set up and a bi-directional, infinitely variable feed, it faces and bevels with remarkable speed and precision. Facing diameters range from 1.5 to 12 inches (38.1 to 304.8 mm).

Specification:

Facing Diameter: 1.5 – 12 inches (38.1 – 304.8 mm)
Milling Diameter: N/A
ID Mounting Diameter: 1.5 – 6.75 inches (38.1 – 171.5 mm)
OD Mounting Diameter: N/A
Power Option: Pneumatic

Product Advantages

Simple, Safe, Accurate Flange Facing

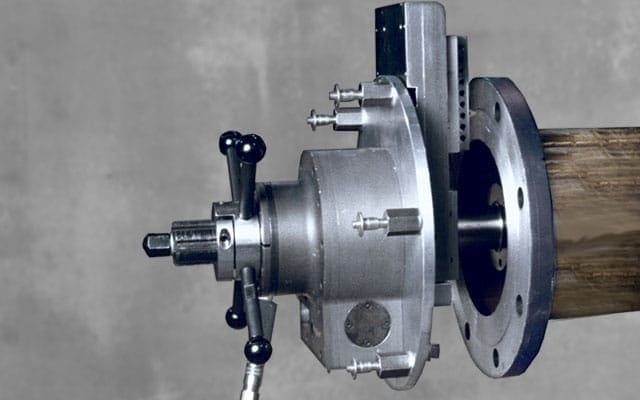

The H&S TOOL Model MFTF Flange Facer is a versatile flange facer designed for flanges ranging from 4.25 inch ID to 16.25 inch OD (19.1 – 412.8 mm). The MFTF is a reliable pipe machine tool with a premium flange facing conversion kit. Powered by reliable pneumatic or electric motors to accurately meet your job site or shop requirements.
The Model MFTF is portable, making it ideal for use in the field. Setup and operation are easily handled by a single worker.
Kits include everything necessary to convert your beveling tool with illustrated instructions.
Standard wedge plates can be used for internal locking or precision elbow mandrels are available. The mandrels are designed to mount in short-radius elbows.
The minimum straight depth to mount the model MFTF is 1.25 inch (31.8 mm).
Centering and squaring devices make accurate machining of gasket surfaces and/or bolt patterns simple and safe.
