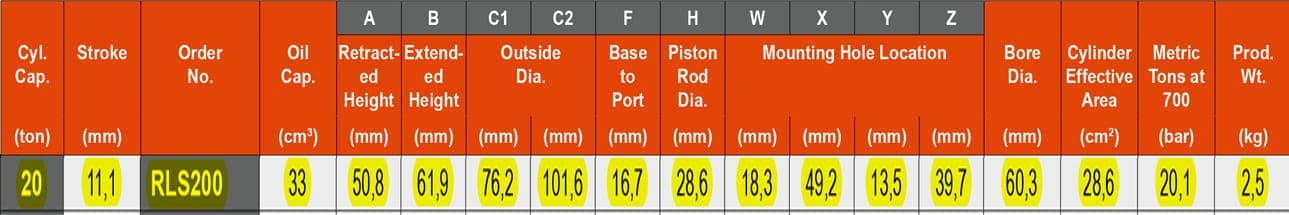

RLS200
Features:
■■ Low height starting at 41,3 to 101,6 mm.■■ Cylinder body, piston and gland nut are “Power-Tech” treated for corrosion and abrasion resistance.
■■ Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading.
■■ Unique heavy-duty spring provides fast piston return on all cylinders, except RLS50. ■■ Coupler is angled upward for extra clearance, except RLS50.
■■ Complies with ANSI / ASME B30.1 safety standards.
